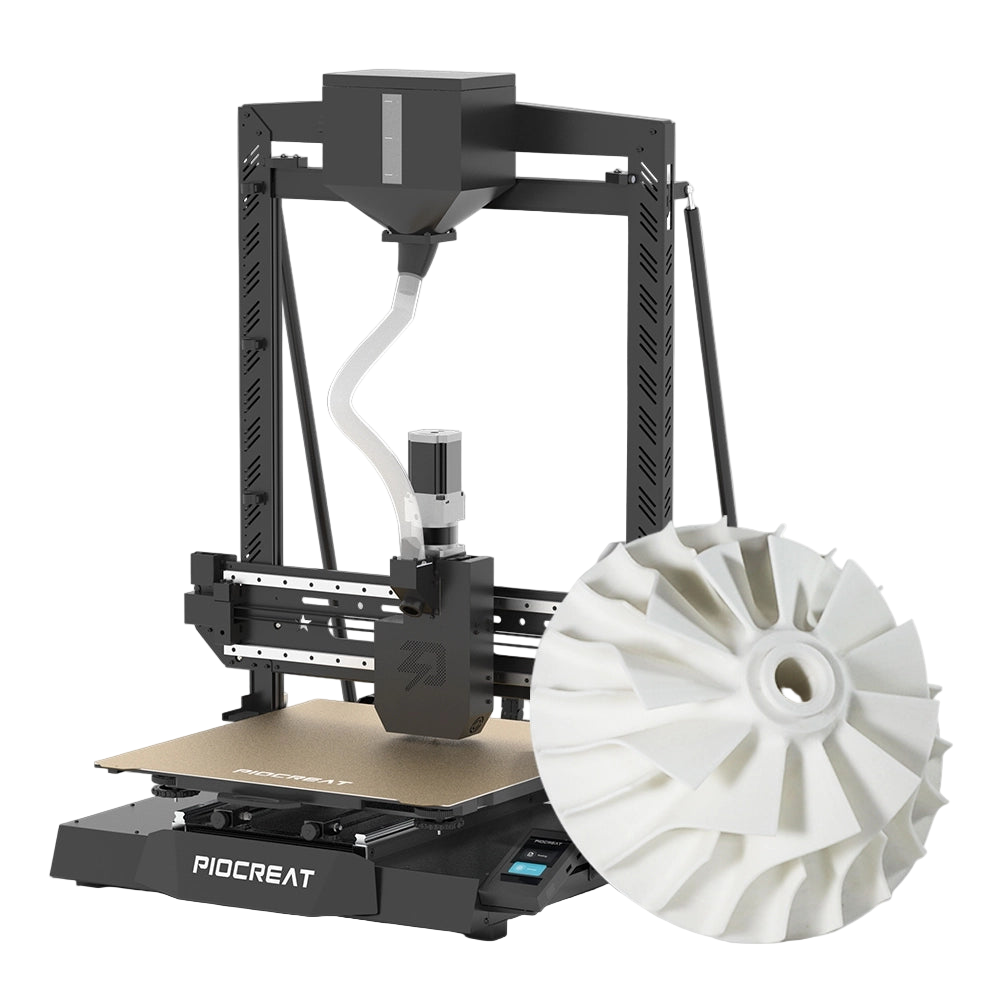

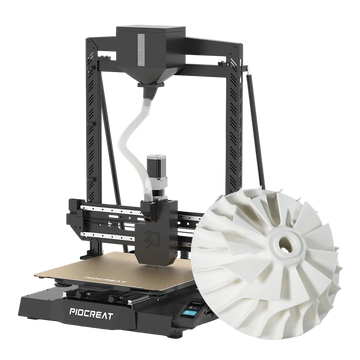

PioCreat G5 Ultra Pellet
PioCreat G5 Ultra Pellet
Piocreat G5 Ultra Pellet revolutionizes desktop manufacturing with Fused Granulate Fabrication (FGF) technology, printing directly from thermoplastic pellets at 220 mm/s speeds and 0.8 kg/hour deposition rates in a massive 500×500×400 mm build volume. Featuring a next-generation extruder with 420°C capability and segmented heat zones, it accommodates 0.4-3.0 mm nozzles for printing PA-CF, PA-GF, PC-CF, PLA, PETG-GF, ABS, PS, and recycled materials from the 3-liter hopper. Intelligent laser ranging provides contactless bed leveling, while material level sensor with pause-resume functionality prevents failed prints from pellet depletion. Klipper firmware enables WiFi connectivity, remote monitoring, and advanced features for seamless operation.
Key Features
-
Revolutionary FGF Technology – Direct pellet printing reduces material costs by up to 90% compared to filament-based systems
-
Ultra-High Temperature Capability – 420°C extruder with segmented heat zones handles advanced composites and engineering materials
-
Industrial-Scale Performance – 0.8 kg/hour deposition rate at 220 mm/s enables rapid large-format production
-
Smart Material Management – 3L hopper with level sensor, automatic pause-resume, and recycled pellet compatibility
-
Professional Automation Suite – Intelligent laser bed leveling, power-loss recovery, and Klipper firmware with WiFi control
-

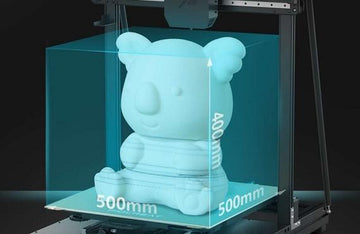

Massive Build Volume – 500×500×400 mm workspace ideal for architectural models, tooling, and batch production
-
Eco-Friendly Innovation – Uses pellets and shredded recycled plastics for sustainable additive manufacturing
Full-Auto Calibration

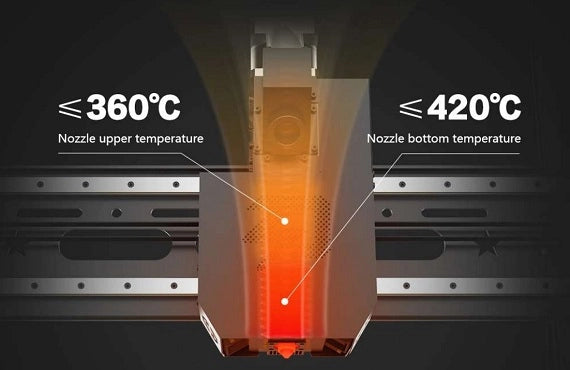

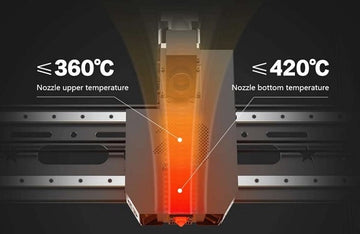

The next generation extruder (with segmented heat zones) can fit nozzles in diameters ranging from 0.4mm up to 3mm, and the machine can print pellets/granules measuring 2-5mm in diameter. The particles are fed into the extruder from a 3 liter hopper, ensuring a ready supply of feedstock for its huge deposition rate. It heats up to a toasty 420°C, enabling the printing of a wide range of materials.
Air Assist

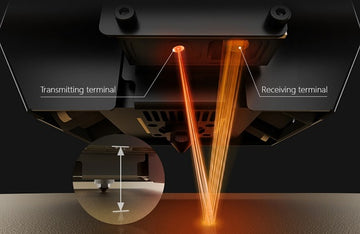

Using laser sensor non-contact measurement technology, the leveling time can be significantly shortened and the leveling accuracy can be improved; Not only ensure the real-time and high safety of the leveling operation under the high temperature platform, but also avoid interference with the model during the printing process.
Unleash the full potential of high-performance materials
The G5Ultra boasts desktop 3D printing speeds that reach up to 220mm/s. With regards to the flow rate of the materials, the G5 Ultra is capable of depositing a staggering 0.8kg per hour, ensuring it stands out for individuals requiring rapid production without compromising the intricacies of design or the overall quality of the final product.
SOTA Filament Monitoring

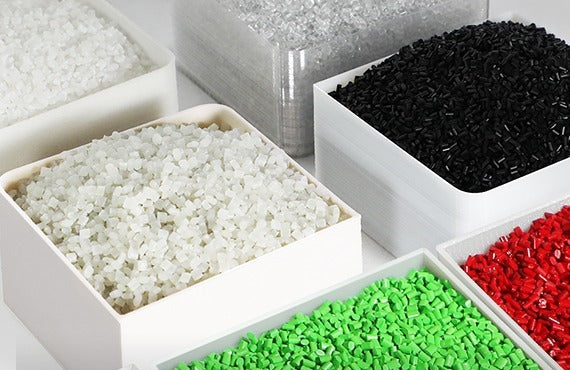

With its ability to heat up to 420℃, the G5Ultra Pellet 3D Printer excels in processing a wide range of thermoplastics and composites. This flexibility allows for experimenting with various pellets, including PA-CF,PA-GF,PC-CF, PLA, rPLA, PETG-GF, ABS, PS, GPPS, PP-GF, and more, enabling the creation of functional prototypes, artistic works, or educational models with desired material properties.
