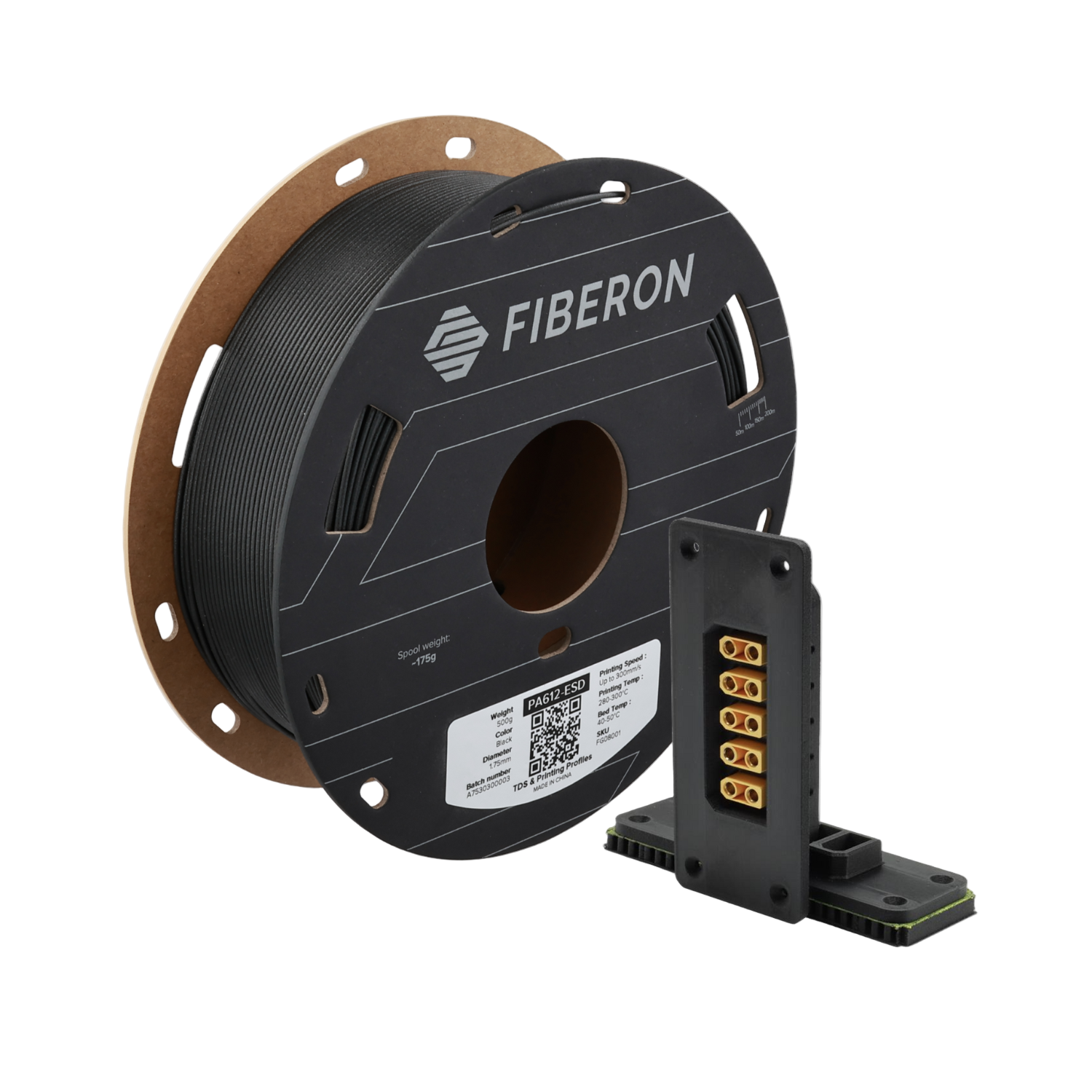

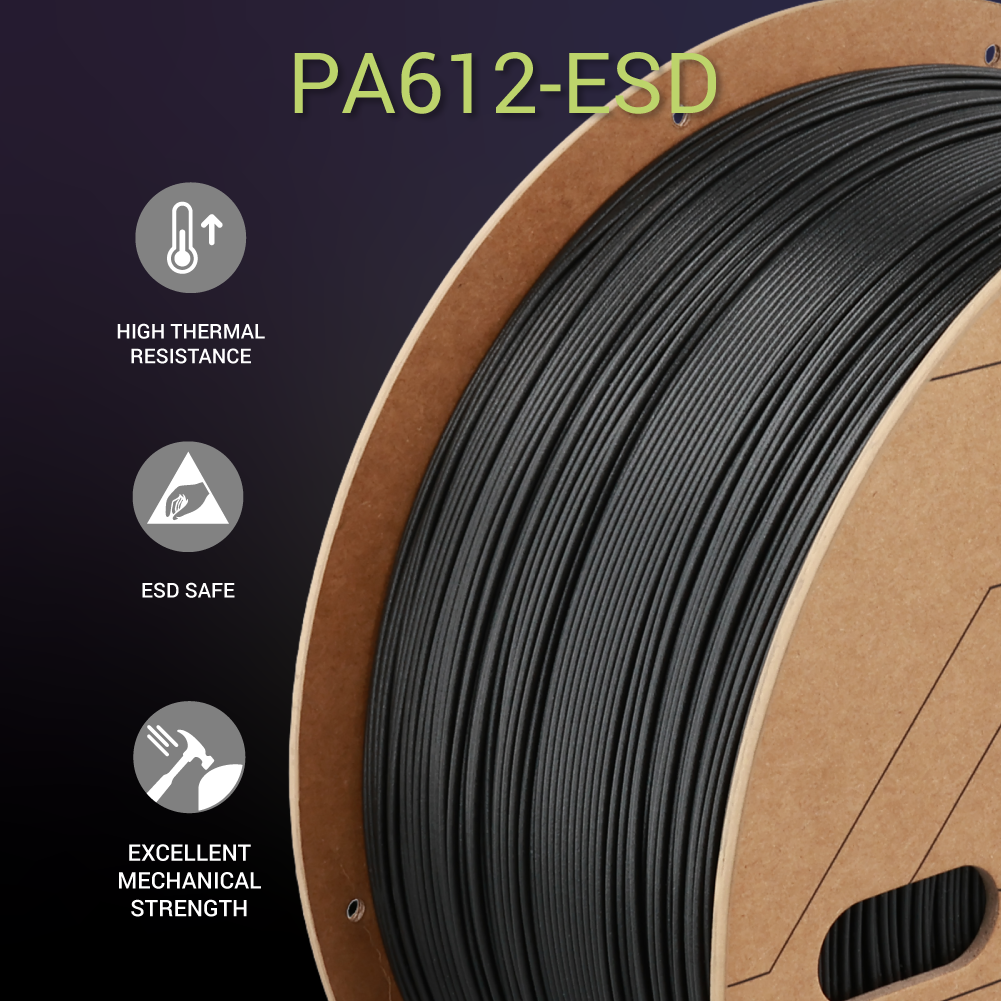

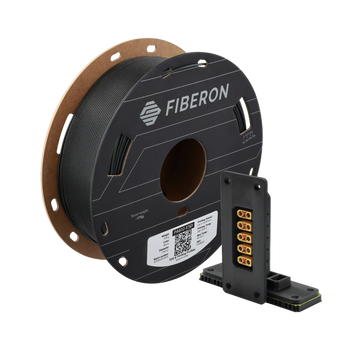

Fiberon PA612-ESD
Fiberon PA612-ESD
Experience professional ESD protection with Fiberon PA612-ESD electrostatic discharge nylon filament, delivering industrial grade anti-static manufacturing with superior heat resistant cleanroom excellence. This carbon nanotube enhanced filament features 10% carbon fiber reinforcement, exceptional 157°C HDT, and surface resistivity of 10⁴–10⁷ Ω/sq for mission-critical electronics applications. Engineered for ESD safe electronics housing printing at 280-300°C with outstanding 84 MPa tensile strength and dimensional stability. Trust this industrial manufacturing ESD solution for PCB storage boxes, cleanroom equipment, electronic housings, and industrial jigs requiring precision static discharge protection and professional reliability.
Key Features
-
Professional ESD Protection surface resistivity 10⁴–10⁷ Ω/sq electronics manufacturing certified
-
Heat Resistant Excellence 157°C HDT cleanroom applications proven performance guaranteed
-
Carbon Nanotube Enhanced 10% carbon fiber 84 MPa tensile strength superior reliability
-
High Speed Manufacturing up to 300mm/s low warping dimensional stability professional ready
-
Industrial Grade Composite 4294 MPa modulus demanding applications proven durability excellence
Material Properties & Composition
Fiberon PA612-ESD is an advanced ESD-safe nylon composite filament engineered with carbon nanotubes (CNT) and 10% carbon fiber reinforcement, delivering exceptional mechanical properties including Young's modulus of 4293.7 MPa (X-Y direction) and tensile strength of 84.3 MPa according to Polymaker's official technical data sheet. The material features superior thermal properties with glass transition temperature of 41.8°C, melting temperature of 187.3°C, and heat deflection temperature of 157.0°C at 0.45 MPa, while maintaining a density of 1.10 g/cm³ and processing at 280-300°C with heated bed at 40-50°C. With optimized static dissipation properties and enhanced dimensional stability, this engineering-grade thermoplastic provides reliable ESD protection for sensitive electronic applications.
ESD Protection & Electronic Applications

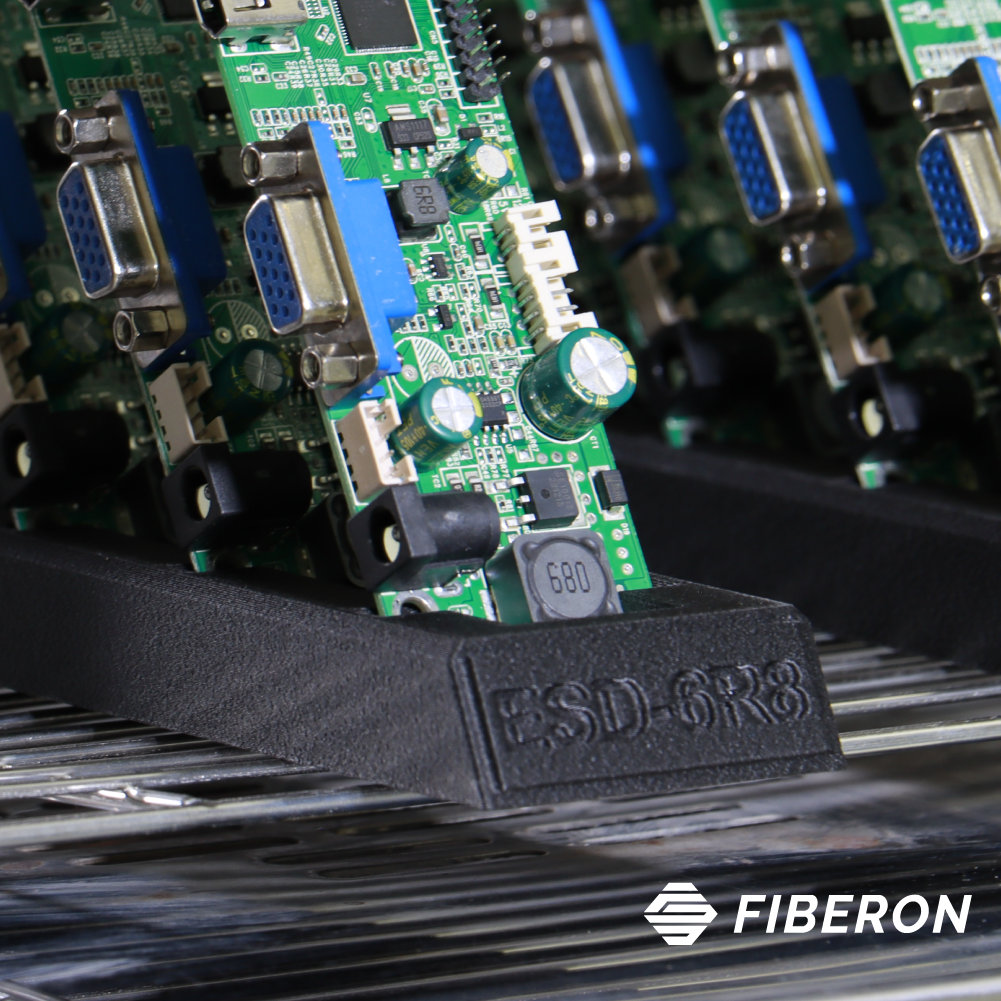

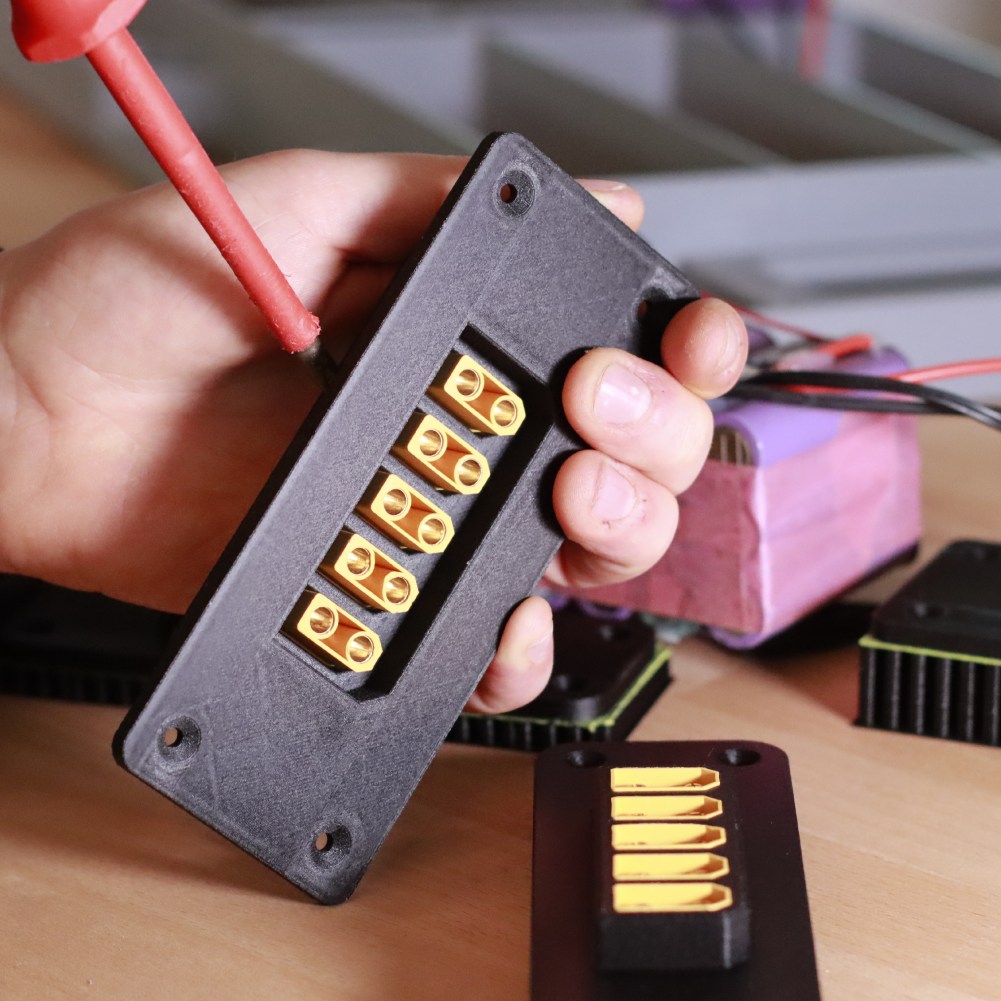

Fiberon PA612-ESD provides reliable electrostatic discharge protection with surface resistivity ranging from 10⁴ to 10⁷ Ω/sq depending on temperature and print orientation, ensuring safe static dissipation for sensitive electronics according to Polymaker specifications. The material excels in demanding electronic applications including PCB storage boxes, ESD-safe shelves and racks, high-temperature electronic housings, structural components for cleanrooms, and industrial jigs and fixtures. With superior performance compared to PETG-ESD including 2× higher heat resistance (up to 150°C HDT), significantly greater mechanical strength and rigidity, better wear resistance in cleanroom applications, and lower moisture absorption for stable long-term performance.
High Temperature Resistance & Dimensional Stability
Fiberon PA612-ESD demonstrates exceptional heat resistance with heat deflection temperature of 157.0°C at 0.45 MPa and Vicat softening temperature of 190.0°C, maintaining mechanical integrity in high-temperature industrial environments according to Polymaker's official specifications. The material exhibits outstanding dimensional stability with low shrinkage characteristics and excellent bending modulus of 3745.5 MPa (X-Y direction) in dry conditions, ensuring consistent performance across long printing jobs and complex geometries. Users must employ hardened steel or ruby nozzles due to rapid brass nozzle wear (approximately 9 hours lifespan), dry the filament at 100°C for 10 hours before printing, and can achieve enhanced performance through post-printing annealing at 100°C for 16 hours as specified in Polymaker's technical guidelines.
