Bambu Lab PAHT-CF
Bambu Lab PAHT-CF
PAHT-CF filament combines nylon (PA12) and carbon fiber for strong, heat and water resistant parts that keep their shape even in humid conditions. It prints at 260–290 °C with RFID auto-settings for AMS systems, uses a 0.6 mm nozzle (0.2 mm not compatible), and holds a precise 1.75 mm diameter (±0.03 mm) for smooth flow.
Key Features
-
Low moisture absorption (0.88% vs 1.70% for standard PA-CF) for stable dimensions in wet environments
-
High tensile strength (125 MPa) and impact resistance (57.5 kJ/m²) for durable engineering parts
-
Exceptional Z-layer adhesion (13.3 kJ/m², 133% higher than PA-CF) to resist delamination under stress
-
Heat deflection up to 194 °C for use in high-temperature applications
-

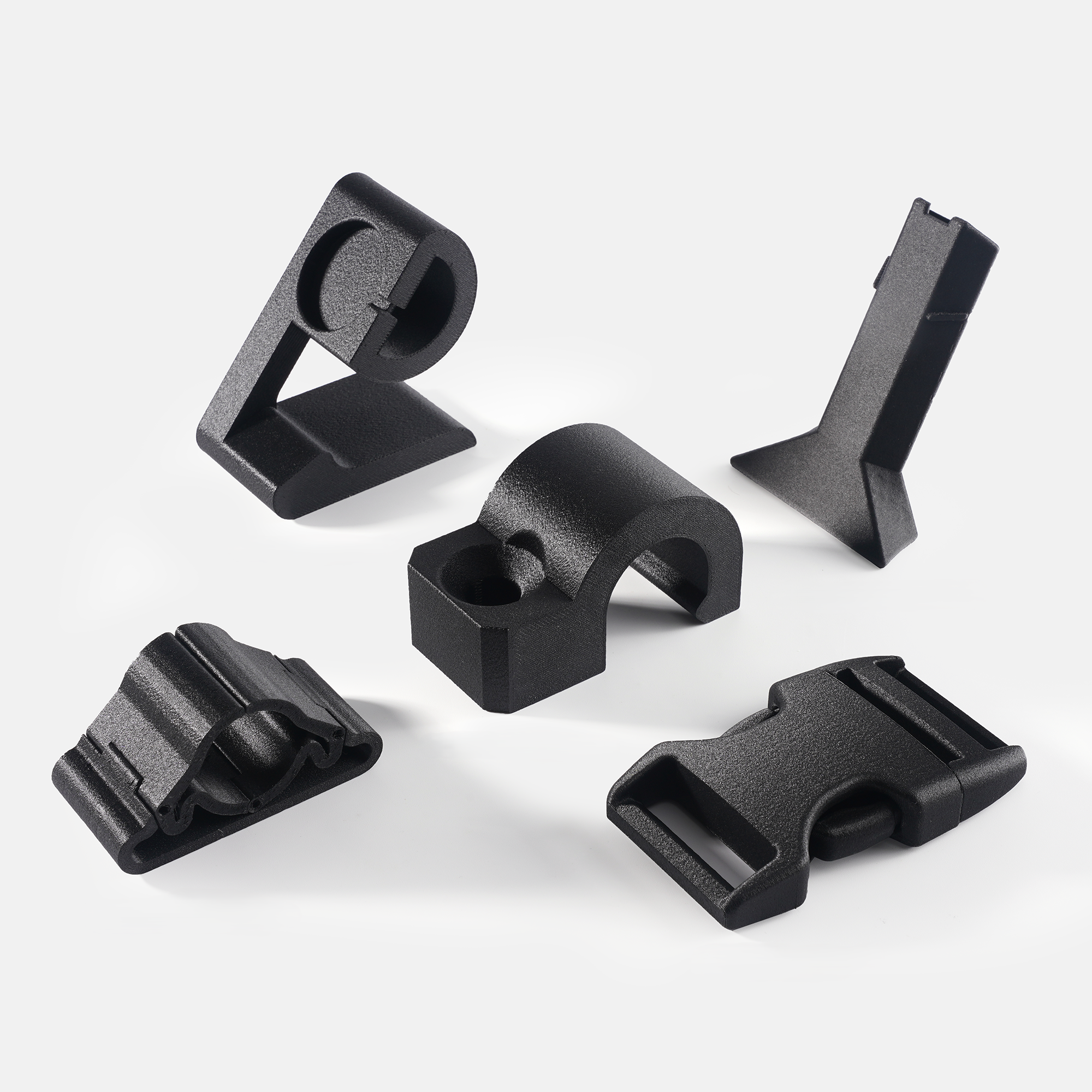

Matte black finish hides layer lines and suits functional prototypes, jigs, and low-volume parts
-
AMS-compatible with RFID spool for fast, error-free material loading (AMS Lite not supported)
-
Requires drying at 80 °C for 8–12 h and an enclosed printer for best print quality
- Enclosure Printer Required
- 0.6 mm Nozzle Recommended
Low water absorption
Bambu PAHT-CF features 50% lower water absorption than standard PA-CF, preserving exceptional mechanical properties and dimensional stability even in high-humidity environments.

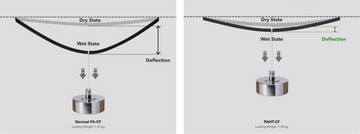

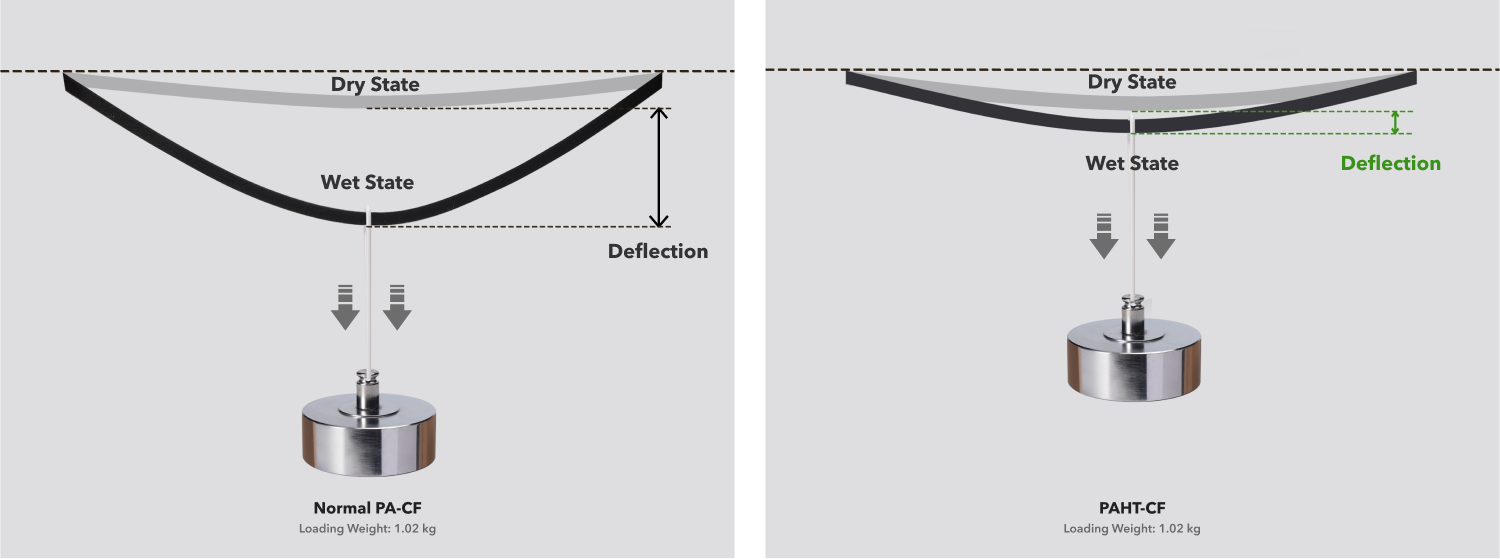

Deflection from Dry to Wet :

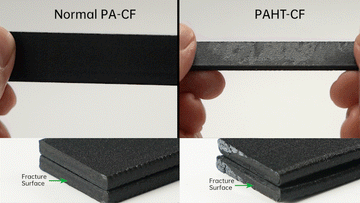

Exceptional Z-bonding
Bambu PAHT-CF delivers superior Z-layer adhesion versus standard PA-CF, ensuring parts withstand high impact and stress without breaking or deforming.
RFID for Intelligent Printing
All printing parameters are embedded in RFID, which can be read through our AMS (Automatic Material System). Load and print! No more tedious setting steps.
